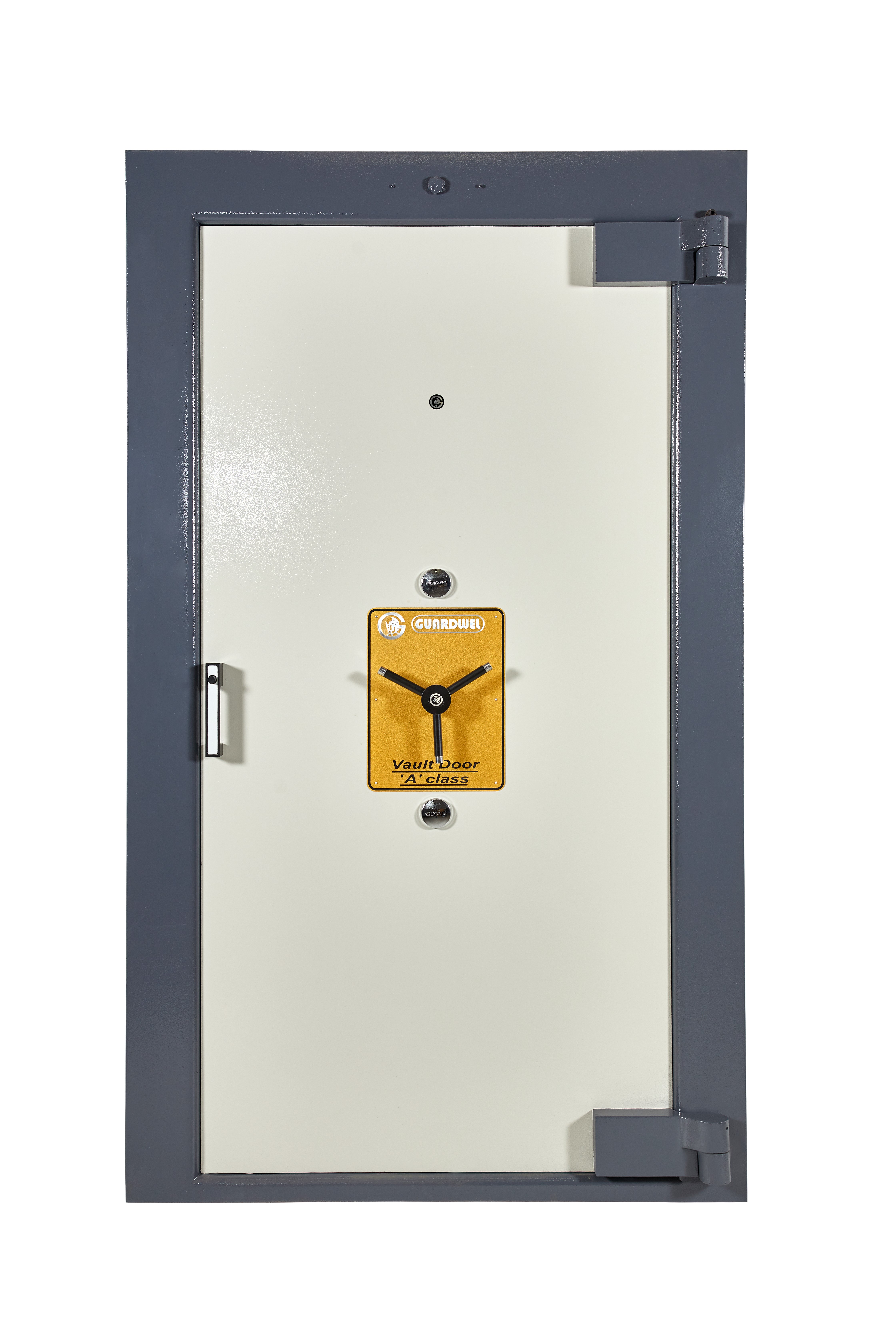

A Class Strong Room Door

Guardwel Strong Room Door, also known as a Vault door, is an exceptionally robust and secure door designed to provide maximum protection and security for valuable assets, documents, or sensitive materials stored within a strong room or vault. Guardwel’s Standard Strong Room Doors are specially designed to provide unparalleled security to the banking and financial industry against ever-evolving burglary techniques. Our doors are made of sturdy steel plates and barrier materials that are resistant to oxyacetylene torches and tools, making it difficult to penetrate the door even with multiple modes of attack and the latest tools. The unique combination of different barrier layers ensures the highest level of security for the strong rooms of banks across India.

Get more info from our Expert
  • Guardwel offers enhanced protection against burglary with its in-house torch and tool resistant barrier material.


  • The vault features a hinged foot-bridge that can be folded into the vestibule for easy passage of trolleys.


  • Default provision is made for retro fitting of Time Lock.


  • The strong room doors are equipped with two Guardwel HS dual control key locks, each with non-magnetic duplicate keys.


  • Lock options include Biometric Lock, Electronic Lock, Time Lock, and Mechanical Combination locks.


  • Guardwel SRDs are available in regular Right hung or special Left hung models.


  • Accessories for the strong room are also available, such as Air Ventilators, Inspection Trolley, and Mobile Ladder.

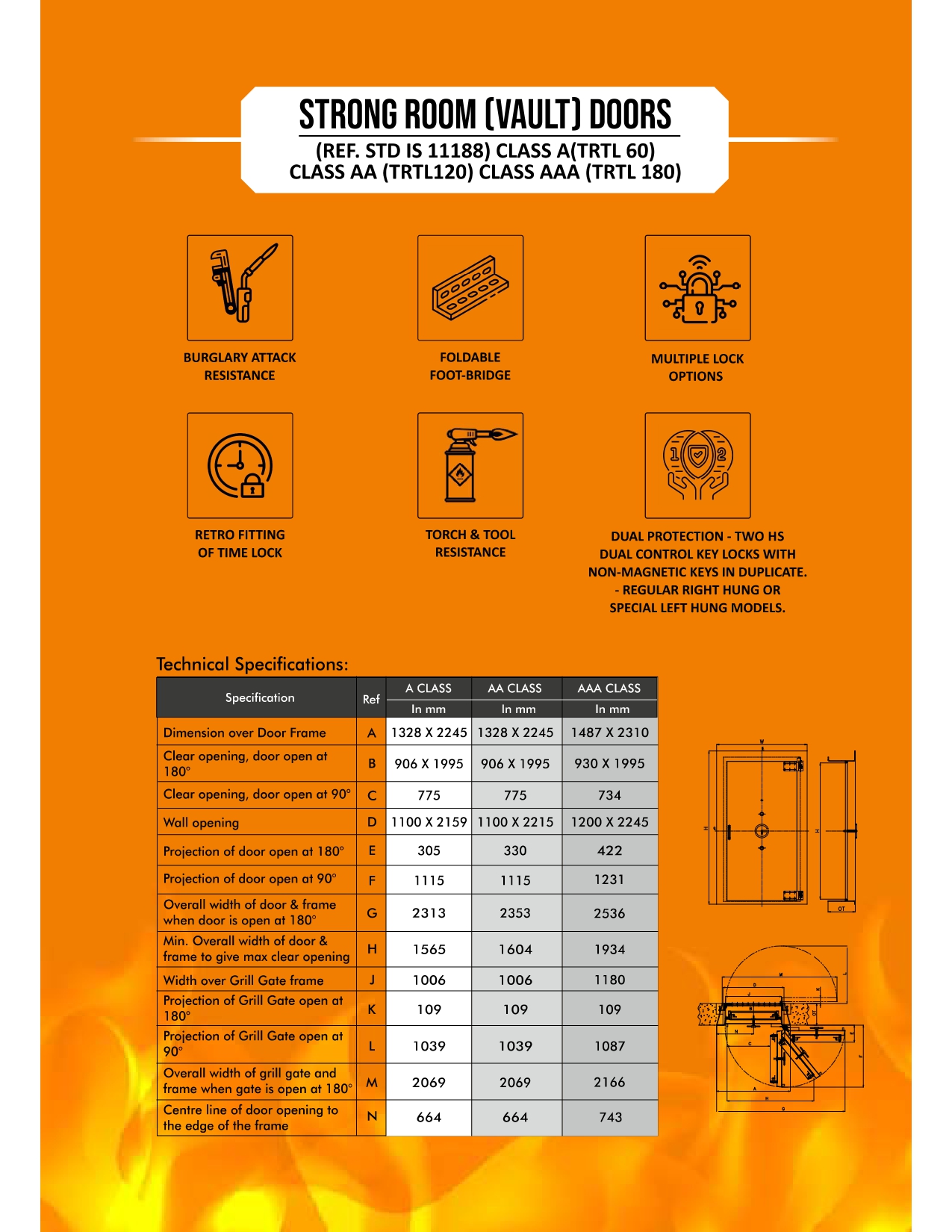

Technical Specification

SPECIFICATIONS
REF
A CLASS (mm)
Dimension over Door FrameA1328 X 2245
Clear opening, door open at 180°B906 X 1995
Clear opening, door open at 90°C775
Wall openingD1100 X 2159
Projection of door open at 180°E305
Projection of door open at 90°F1115
Overall width of door & frame when door is open at 180°G2313
Min. Overall width of door & frame to give max clear openingH1565
Width over Grill Gate frameJ1006
Projection of Grill Gate open at 180°K109
Projection of Grill Gate open at 90°L1039
Overall width of grill gate and frame when gate is open at 180°M2069
Centre line of door opening to the edge of the frameN664
